Automatic Adhesive Label Flatbed Die Cutting Machien With Punching
Main features
1)Servo Motors are equipped for accurate material transmission.
2)Touch Screen for convenient operation
3)Frequency Converter used for speed regulation
4)3 pcs of Photocells are used for web guiding
5)Unwind, sheeter device, rewinder are equipped for multi purpose.
Product Description

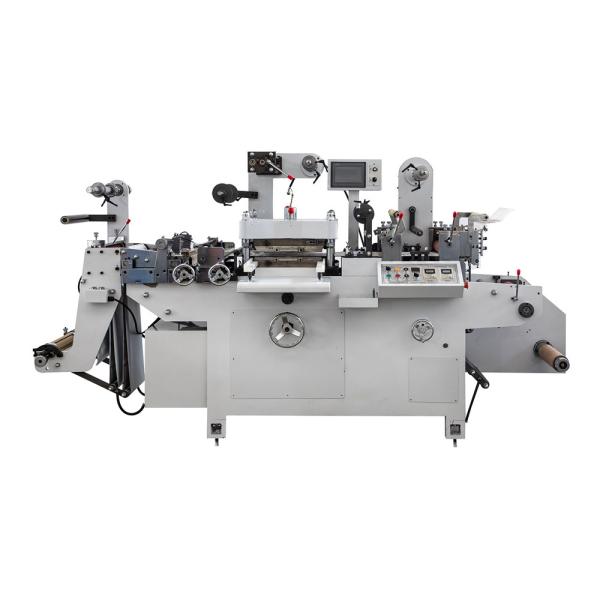

RTMQ-350 is a kind of flat-bed die cutting machine with high precision.
It is adopts accurate flatten die cutting system, material traction control by servo motor, three photocell for web-guiding ad positioning.
It has functions such as hot stamping punching and laminating to make your products more beautiful and shiny.
the machine is applicable to die cut self adhesive labels, dacron film labels and laser anti-false labels.
It is the ideal auxiliary equipment of flexo printing machine, silk screen printing machine, gravure printing machine and hologram mark printing machine, and the most efficient unit for printing house.
Main Technical Specification:
| Model | 350 model | | cut speed | 300 time/min | | Max unwinding diameter | 550mm | | Max web width | 320mm | | Max die-cut width | 320mm | | Position accuracy | ±0.1mm | | Total power | 6kw | | Power voltage | 380V, 3 phase (can make as your request) | | Machine weight | About 2000kg | | Overall dimension | 2.9(L)×1.3(W)×1.4(H)(m) | |
Material details:
| material | paper label, foam tape, PVC label |
| cutting mould | made by wooden |
FQA
1.Are you factory or trading company?
We are factory.
2.What is your after service?
We offer customer a lifetime service.
3.Do you have CE certificate?
Yes, we have CE certificate of our machines.
4.What is the shipping time?
Around 15-30 days, depend on different model.
5.What can I do if machine stop work?
You can email us, call us or online video calls, face to face solve problem.
If the spare parts or something broken, in the warranty time,
we offer free.
