High Speed Automatic Flatbed Foil Stamping And Die Cutting Machine
Product Description
RTMQ-450 is a kind of flat-bed die cutting machine with high precision.

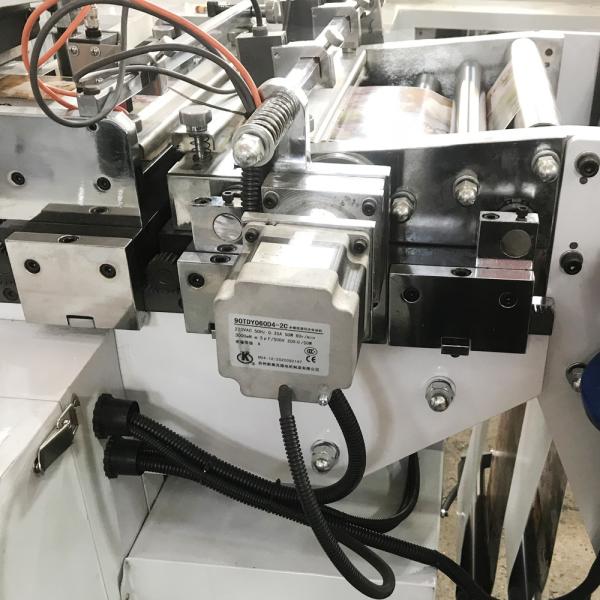

It is adopts accurate flatten die cutting system, touch Screen for convenient operation,servo Motors are equipped for accurate material transmission., 3 pcs of Photocells are used for web guiding,it is unwind, sheeter device, rewinder are equipped for multi purpose.
It has English and Chinese two language, functions such as hot stamping punching and laminating to make your products more beautiful and shiny.
It is the ideal auxiliary equipment of flexo printing machine, silk screen printing machine, gravure printing machine and hologram mark printing machine, and the most efficient unit for printing house.
Main Technical Specification:
| Model | 450 model | | cut speed | 160 time/min | | Max unwinding diameter | 550mm | | Max web width | 420mm | | Max die-cut width | 420mm | | Position accuracy | ±0.1mm | | main motor power | 3.5kw | | Power voltage | 380V/220v (can make as your request) | | Machine weight | About 2600kg | | Overall dimension | 2.45(L)×1.35(W)×1.60(H)(m) | |
Material details:
| material | paper label, foam tape, PVC label |
| cutting mould | made by wooden |
FQA
1.Are you factory or trading company?
We are factory.
2.What is your after service?
We offer customer a lifetime service.
3.Do you have CE certificate?
Yes, we have CE certificate of our machines.
4.What is the shipping time?
Around 15-30 days, depend on different model.
5.What can I do if machine stop work?
You can email us, call us or online video calls, face to face solve problem.
If the spare parts or something broken, in the warranty time,
we offer free.
